Good home building plans must
include a detailed framing plan.

Contractors value the inclusion of a detailed and accurate framing plan in a set of home building plans. The framing plan (along with the structural sections) is the sheet most referred to by the carpenter in the field. It is a framing "road map" of how the house should fit together.

The framing plan shows the size, spacing and direction of all roof rafters and ceiling joists. It also specifies the size of all beams and headers in the house, and it references many different framing details which are found on the details sheet. An example of a two story house framing plan is shown below.

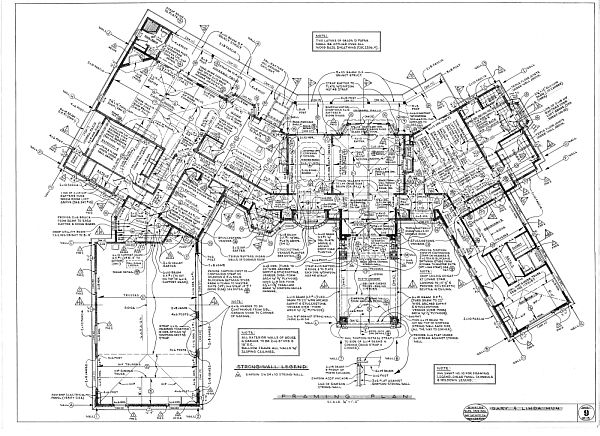

First Floor Framing Plan

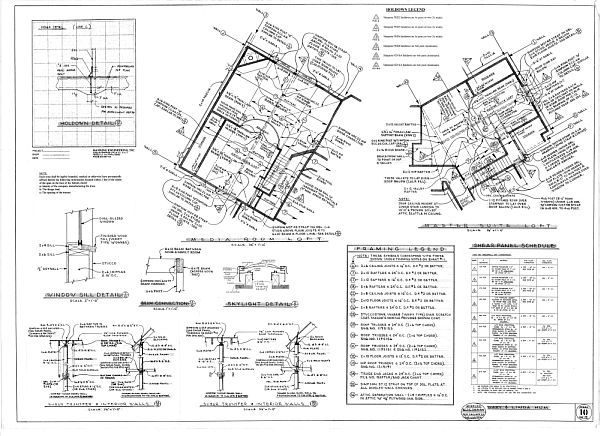

Second Floor Framing Plan

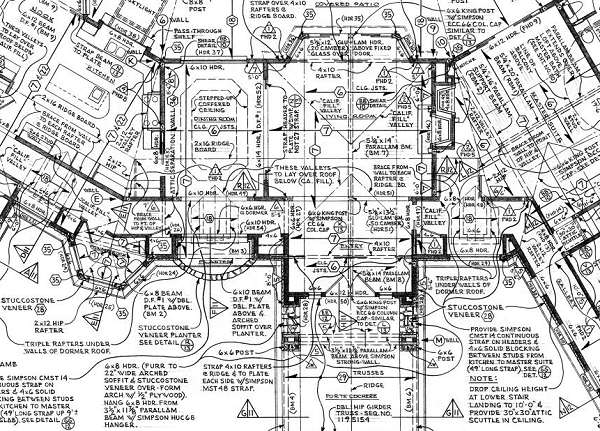

Close-up view of Framing Plan detail.


When we begin the structural drawings on a set of home building plans, we start with the framing plan. We determine how many structural sections we will need to cut through the house in order to show every different roof situation. Most house plans have only one or two typical framing sections. But we want the sub-contractors in the field to be able to fully understand how the home should be put together.



Large house plans sometimes require us to draw 10 or more structural section views. Small house plans usually have a minimum of 6 section views. On the framing plan, we show where each section is to be cut. A triangular-shaped flag on the plan shows the direction of each structural section. And the numbers inside the flag refer the builder to that particular view on the sections sheet.

There is also a shear panel nailing schedule on this sheet which is provided by our structural engineer. Every effort is made to make things as detailed and clear as possible. Simpson Strong-Tie framing connectors are called out on this sheet (and on the sections sheet and the foundation plan as well). If roof trusses are used on the house (and most plans today use at least some trusses), they will be called out on this sheet and on the sections sheet.

Drawing house plans in a way that pleases the owner, the builder, and the building department is not easy nor simple. Providing lots of information and detail is the only way we know of to draw custom homes, and we wouldn't put our name on anything less. This is why we have enjoyed an excellent reputation through the years with all three parties (the owners, the builders, and the building departments).

The framing plan links together on the home building plans with the structural sections. It is the nuts and bolts of the planning process. It is also the page which will be most scrutinized by the building department.


Other important structural building pages include:

The structural Sections sheet

The Foundation Plan

The structural Details sheet

Structural Engineering calculations
